Row Wizard

Info

This feature is available in Contao 5.7 and later.

This widget allows you to render one or more rows of arbitrary DCA fields. Each row consists of a configurable set of child widgets that are parsed and rendered directly by the core. The widget validates each child field individually and stores the resulting rows as a serialized array.

Features

Parses and renders DCA field definitions directly
Allows callbacks on the used widget fields
Uses the existing backend Stimulus controllers
Validation is handled by the individual child widgets
Stores multiple rows as serialized data
Optional drag & drop sorting (enabled by default)
Configurable minimum and maximum number of rows
Configurable row actions

Supported widgets

Since the Row Wizard parses DCA field definitions directly, it works with most standard widgets.

Known limitations

The following widget options and modifications do not work within the row wizard

eval.color-picker
eval.datepicker
eval.rte
Any modifications that append JS to the widget (via DataContainer::row())
Custom widgets provided by extensions that are dependent on JavaScript (Stimulus controllers may work)

Additional information about known limitations can be read in the associated pull request.

Options

This table only shows the options relevant to the core functionality of this widget. See the DCA reference for a full field reference.

Key	Value	Description
`inputType`	`rowWizard` (string)
`fields`	`array`	Associative array of DCA field definitions rendered per row.
`fields.<FIELD>.eval.cell_class`	CSS class(es) (`string`)	Same as `eval.tl_class` but the classes are applied to the widget cell.
+
`fields.<FIELD>.eval.cell_style`	CSS styles (`string`)	Same as `eval.style` but the styles are applied to the widget cell.
`eval.actions`	`array`	Allowed values: `copy`, `delete`, `enable`. Default: `['copy', 'delete']`.
`eval.sortable`	`bool`	Enables or disables drag & drop sorting (default: `true`).
`eval.min`	`int`	Minimum number of rows.
`eval.max`	`int`	Maximum number of rows.

Field Callbacks

You can register [callbacks]({{ relref “callbacks” }}) for Row Wizard fields using the following schema: fields.<FIELD>.fields.<FIELD>.<CALLBACK>, for example fields.rowWizard.fields.type.options

Column Definition

The Row Wizard stores its data as a serialized array containing all defined rows and their field values. Since the total length cannot be predicted, a blob column is recommended.

Examples

Usage within contao/core-bundle

tl_content.fields.data (contao/contao-core)

use Doctrine\DBAL\Platforms\MySQLPlatform;

// …
'data' => [
    'inputType' => 'rowWizard',
    'fields' => [
        'key' => [
            'label' => &$GLOBALS['TL_LANG']['MSC']['ow_key'],
            'inputType' => 'text'
        ],
        'value' => [
            'label' => &$GLOBALS['TL_LANG']['MSC']['ow_value'],
            'inputType' => 'text'
        ],
    ],
    'eval' => ['tl_class' => 'w66 clr'],
    'sql' => [
        'type' => 'text',
        'length' => MySQLPlatform::LENGTH_LIMIT_BLOB,
        'notnull' => false
    ],
],
// …

All options

use Doctrine\DBAL\Platforms\AbstractMySQLPlatform;

// …
$GLOBALS['TL_DCA']['tl_content']['fields']['rowWizard'] = [
    'label' => ['rowWizardExample', 'And some random description'],
    'inputType' => 'rowWizard',
    'fields' => [
        'type' => [
            'label' => ['Type'],
            'inputType' => 'select',
            'options' => ['foo', 'bar', 'baz', 'quux'],
            'eval' => [
                'includeBlankOption' => true,
                'chosen' => true,
            ],
        ],
        'checkbox' => [
            'label' => ['Checkbox'],
            'inputType' => 'checkbox',
        ],
        'textarea' => [
            'label' => ['Textarea'],
            'inputType' => 'textarea',
        ],
        'text' => [
            'label' => ['Text'],
            'inputType' => 'text',
        ],
    ],
    'eval' => [
        'tl_class' => 'clr',
        'actions' => [
            'copy',
            'delete',
            'enable',
        ],
        'min' => 2, // minimum two rows
        'max' => 5, // maximum of five rows
        'sortable' => false, // disable the sorting, defaults to true
    ],
    'sql' => [
        'type' => 'blob',
        'length' => AbstractMySQLPlatform::LENGTH_LIMIT_BLOB,
        'notnull' => false,
    ],
];
// …

Usage in Contao

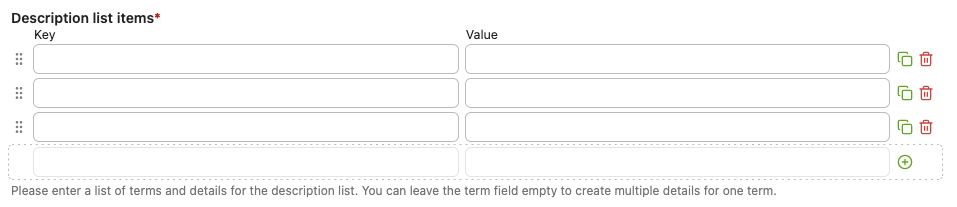

The row wizard widget is used in the Description list content element for example in order to be able to enter the list of description terms (the “key”) and description details (the “value”).
